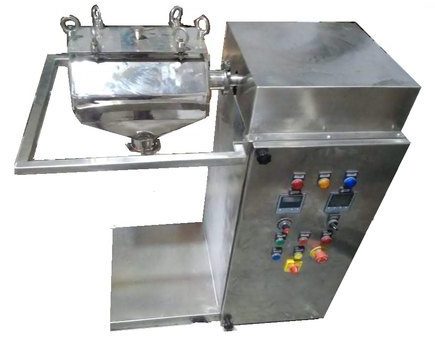

Lab Model Octagonal Blender

Lab Model Octagonal Blender is designed to process larger volume of material. It occupies less space compared to other similar blenders like V and Double Cone. Power consumption is also less. The blending takes place at low speed during operation. It is well balanced even in higher capacities. It is very useful for pharmaceutical industries where in gentle of dry granules of powder are to be done. It is a slow sped blender and has removable type baffles mounted on a rectangular shell. The important feature of machine is easy to wash in place. Octagonal blender is supplied with a bin charging system or can be designed for vacuum charging. Dust free charging system is also incorporated, which is a completely closed system for charging and discharging of powders and granules. The power consumption is comparatively lower than other similar types of blenders. The machine basically consists of shell welded with conical Octagonal shape ends and supported with sturdy supporters on the both sides.

The right-hand side shaft is connected to a standard gearbox by means of chain and sprockets, which in turn coupled to an electric motor. The whole drive assembly is coupled with SS side panel.

The inside panel portion of Octa body is mirror polished and the outside surface of the Octa body, frame & guards are matt polished. The material is to be mixed is charged in the machine either manually from top or bin discharging system or vacuum charging system and then the port is locked positively. Then blender is started to per-set blending time. At the end of process, machine is stopped and the product is transferred to process containers by opening the butterfly valve.

Exclusive Features of Octagonal Blender Machine

Compact GMP model.
The octagonal shape & slow speed of rotating gives sufficient continuous movement to the granules, result in good quality.
Simple design requires minimum maintenance.
General structure & safety
guards made out of mild steel & colored in Standard Model and made
out of SS 304 & polished to the matt finish in GMP Model.
Maximum care has been taken to ensure safe operation of the unit.
Manual rotating facility with hand wheel for inching.
Bigger size batch at low power consumption
Suitable for dry mixing of products in granule form.
Easy for loading and unloading of material.
Easy for cleaning.
All contact parts are made out of SS 304 / SS 316 or SS 316 L quality material, as per customer requirement.

Working Principle of Octagonal Blender Machine

The Lab Model Octagonal Blender is an efficient and versatile blending machine for mixing and lubrication process of dry
granules homogeneously. Two third of the volume of the Cone Blender is filled to ensure proper mixing. The Octagonal Blender Machine gives
best result for granules due to very slow speed and octagonal shape of container. It is uses in application of Pharmaceutical, Food, Chemical
and Cosmetic products.

In Octagonal Blender the granules come from all sides due to the octagonal shape of the product container, hence equirement of blender RPM is less. Octagonal blender design suitable mainly for Crystalline & Granular type material. This type of material gets sufficient continuous movement due to their shape if container have only slow movement and will results in good quality of blending / lubrication of granules.

Technical Specification of Octagonal Shape Mixer

Working Volume in Liters	Gross volume in Liters	Motor Capacity in H. P.	Discharge valve size in mm	Overall dimensions L X W X H in mm approx.
300	375	1.5	150	2165 X 1535 X 2585
500	600	2	200	2250 X 1800 X 2700
600	725	2	200	2300 X 1800 X 2800
750	875	3	200	2300 X 1850 X 2800
800	950	3	200	2350 X 1000 X 2800
1000	1150	5	250	2700 X 2100 X 3050
1200	1300	5	250	2800 X 2270 X 3050
1500	1700	5	250	2850 X 2525 X 3120
2000	2200	7.5	300	2800 X 2800 X 3350
2500	2700	7.5	300	2800 X 2800 X 3450
2800	3500	10	300	2800 X 2900 X 3500
3400	4000	10	300	2900 X 3000 X 3700

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
