Sigma Mixer with Extruder

The Sigma Mixer with Extruder is used for mixing, kneading and extruding of highly viscous mass, sticky and dough like products, Mixing of pastes, rubber, and heavy plastic masses, The sigma kneader is a double arm mixer with two “Z” blades rotate towards each others at same or different speed inside a W- shaped product container.

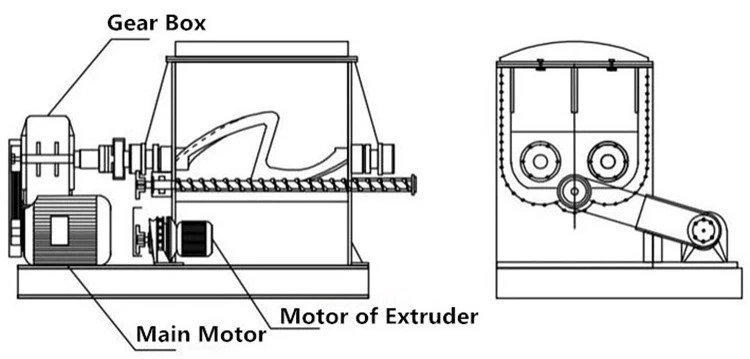

The extrusion screw is located in the saddle section and runs in a cylindrical trough tangential to and below the 2 mixing blades.

When the product has finished the mixing cycle, discharge/extrusion is performed simply by running the extrusion screw in a forward direction.
The double arm sigma blades normally continue to run throughout the extrusion process providing a thoroughly mixed product at all stages of the production cycle.
Speed variation of the extrusion screw allows adjustment of the product flow, depending on the viscosity.

APPLICATION: Sigma mixer are widely used in Food, Pharmaceutical, Chemical and agro industries, Biscuit Dough, Soap industries, Putties, Ayurveda ….etc

SALIENT FEATURES :

Sigma Blade Mixer Designed as per cGMP & Non GMP Standard Model.
Contact parts in AISI 316, AISI 304 or MS as desired by customer.
Shape of extruded material is adaptable to customer’s requirements.
Automated mixing and granulation process in single bowl.
Sigma Blender Available in Capacity from 50kg to 1000 kg.
There are different.

OPTIONAL FEATURES :

PLC Controls with HMI touch screen.
Binder spraying system.
Product Bowl with Jacketing for heating and cooling.
Flame Proof Electrical.
Vacuum or pressure designs.
Automatic control of blade speed based on product viscosity.
