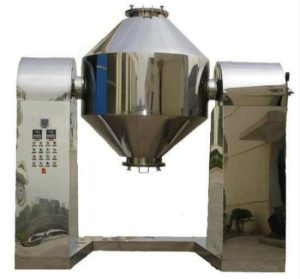

Abster Equipment is a reputed and leading Double Cone Blenders Manufacturers in Mumbai.Double-Cone-Blender-Machine-for-Binder-Powder
The folding, spreading, and cascading action of the Abster’s Conical Blender provides a rapid, homogeneous blending of dry and semi
dry materials. The end over end revolving action, moving materials in and out of a restricted area results in a thorough inter meshing of the
products into a uniform mix.

Double Cone BlenderBatch working capacities

Range from Lab Model to Production Model (upto 4000 ltrs) based on fill level of 55% of total volume. Each blender design is customized
to suit the customer’s specific requirements.

For improved blend uniformity

Special designs incorporating internal deflector cones, or angled shell bodies are available upon request.

Automated Drum Loading System

Conical Blenders can be furnished with a PLC controlled, automated drum loading system. With one full revolution of the blender, the
entire contents of a product container (fiber, plastic or stainless steel drum) can be transferred into the blender and back into drums
after mixing, in a dust-free operation. This system eliminates costly mezzanine platforms, and other feed systems which require special
docking mechanisms that create risk of spillage. During loading, the operator simply rolls the drum onto the roller conveyor, raises the lift
to squeeze the drum against the valve discharge flange seal, and initiates the oad cycle. The double cone blender slowly rotates one revolution while
automatically opening and closing the valve, and stopping at the zero position. The empty drum is lowered, and replaced with a full container
to repeat the cycle until all contents are charged. During discharging, an empty drum is positioned on the roller conveyor and sealed against
the valve discharge flange seal. The operator opens/closes the valve to fill the drum, lowers the drum, and replaces with an empty drum to
repeat the cycle until all contents have been discharged. Abster Equipment is thus one of the most recommended Double Cone Blenders Manufacturers in Mumbai.

Double cone blenders manufacturers Salient Features :

  • PLC controlled, fully automatic load and discharge functions.
  • Butterfly discharge valve is clamped to the blender outlet for quick
    disassembly and with Quick release design for ease of cleaning and maintenance. Valve flange seal can be customized to suit The customer’s
    product container.
  • 0 Degree position for discharge is provided
  • Special PLC programming with safety interlocks for optimum operator safety.
  • Shaft-mounted gear motor installed via shrink disc coupler eliminates
    maintenance of traditional gear drive. Speed regulation via AC variable frequency

Double Cone Blender Capacity Table

Model No. Gross Capacity In Ltrs. Working Capacity In Ltrs. Overall Dimensions (in mm)
(L) x (W) x (H)
Discharge Height Charge Opening Power Supply
DCB-5 16 Ltrs 10 Ltrs 750 580 650 300 100 0.5 HP
DCB-10 35 Ltrs 20 Ltrs 1100 450 1200 300 100 0.5 HP
DCB-25 80 Ltrs 50 Ltrs 1200 600 300 450 150 1.0 HP
DCB-50 150 Ltrs 100 Ltrs 1400 800 1500 450 150 2.0 HP
DCB-100 300 Ltrs 200 Ltrs 1850 900 1900 450 200 2.0 HP
DCB-150 470 Ltrs 300 Ltrs 2000 1100 2000 450 200 5.0 HP
DCB-200 615 Ltrs 400 Ltrs 2100 1200 2100 450 200 6.0 HP
DCB-250 770 Ltrs 500 Ltrs 2200 1300 2200 450 200 7.5 HP
DCB-300 1000 Ltrs 600 Ltrs 2300 1400 2300 450 200 7.5 HP
DCB-400 1340 Ltrs 800 Ltrs 2350 1800 2350 600 250 7.5 HP
DCB-500 1500 Ltrs 1000 Ltrs 2400 1900 2400 800 250 10 HP
DCB-650 2000 Ltrs 1300 Ltrs 2800 2100 2700 800 250/400 10 HP
DCB-750 2500 Ltrs 1500 Ltrs 3000 2200 2600 800 250/400 10 HP
DCB-1000 3350 Ltrs 2000 Ltrs 3200 2300 3100 800 250/400 15 HP
