PVA Emulsion Resin Plant offered are used for getting end product Emulsion that comprises solvent free binders finding application in preparation of paints as well as coatings. Manufactured through polymerization process where monomers are dispersed in aqueous phase for getting uniform & stable emulsion, these paints as well as coatings which are based on emulsion systems deliver quality performance and are also environment friendly.
PVA emulsion resin plant Features:
- High performance and latest technology based Emulsion Resin Plants
- Emulsions processed comprise solvent free binders that find usage in preparation of paints as well as coatings
- Emulsions manufactured through polymerization process
- Paints and coatings are superior in performance and environment friendly
- Emulsions having excellent binding properties
PVA Emulsion Resin Plant
PVA Emulsion Resin Plant offered are used for getting end product Emulsion that comprises solvent free binders finding application in preparation of paints as well as coatings. Manufactured through polymerization process where monomers are dispersed in aqueous phase for getting uniform & stable emulsion, these paints as well as coatings which are based on emulsion systems deliver quality performance and are also environment friendly.
PVA emulsion resin plant Features:
- High performance and latest technology based Emulsion Resin Plants
- Emulsions processed comprise solvent free binders that find usage in preparation of paints as well as coatings
- Emulsions manufactured through polymerization process
- Paints and coatings are superior in performance and environment friendly
- Emulsions having excellent binding properties
Raw Materials:
- Emulsifier
- Monomer
- Catalyst
- Activators
- Acids
- Additives
PVA Emulsion Resin Plant

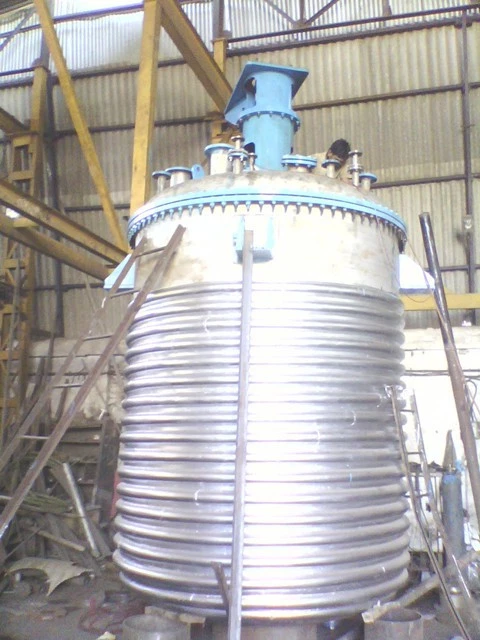

Jacketed Reaction Vessel consist of a Cylindrical vertical shell with standard torospherical dish on both ends.
Technical Specification :
(Synthetic Homo Polymer and Co-Polymer) Emulsion is the core element of any water based paint. All paints are combinations of pigments (colorant) emulsions and water. Along with three ingredients – several additives are used in small quantities. The additives perform several key functions. The additives are generally wetting agents, helping in dispersion, anti settling agent, body agent, flow and leveling additives, driers, gloss improvers and many others.
Whenever we manufacture emulsion we are involved in a long process of 9 to 10 hrs where a DM / DI (Deminerlised) water about 50% and remaining raw material Vinyl – acetate monomer about 35 to 40 % and other chemicals such as catalyst, initiators, surfactants, wetting agent are added. The reaction temperature is about 75 to 80°. As this process is exothermic a small initial heating will helps in enhancing reaction and completion of process, in intermediate sample testing and the controlling the temperature within desired limit is essential to get excellent product.
PVA Emulsion Resin Plant, Polyester Resin Plants Manufacturer, Saturated Polyester Resin Plant, UN-saturated Polyester Resin Plant manufacturer, Alkyd Resin Plants, Polyester Resin Plants, PVA Emulsion Resin Plant, Epoxy Resin Plants, Phenol Formaldehyde Plant, Chlorinated & Silicone Resin Plant, Melamine Formaldehyde Plant manufacturer in India
SPECIFICATION
Capacity |
50 L TO 20,000 LITER |
Machinery in Plant |
Chemical Reactor , Column , Condenser , Receiver & blender |
Reactor Type |
Both Dish End , Motor and Gear box , Inside Agitator for Mixing Material , Bottom discharge connection Vertical outer heating limpet and jacketed |
Usage/Application |
Reaction , Mixing or Blending Row Material |
Mixing Material |
Chemicals / Oils / Lubricant / Liquid Syrup / Sugar Syrup / Wax Melting /Engine Oil |
Material of Construction |
Stainless Steel ,Mild Storage |
Orientation |
Vertical Orientation |
Shape |
Round |
Tank Diameter |
As Per Your Requirement |
Electric Heater |
Single Phase or Three Phase |
Temperature Controller |
Automatic or PLC Operated |
Mixing Speed (RPM) |
Variable , Speed Up And Down As Per Requirement |
Finishing Type |
Matt Type ,Mirror Finishing |
Heating and Cooling System |
YES |
Temperatures Range |
30 TO 250 Degree |
Vacuum |
Yes |
Cooling Coil |
Internal Coil |
Outer |
Heating coil or jacket |
Plat Foam |
Mild Steel |
Application Industry
- Pharmaceutical industry
- Chemical industry
- Food and beverages industry
- Petro-chemical industry
- Resins industry
- Polymers industry
- Coatings industry
- Adhesives industry
- Agricultural industry
- General chemicals industry
- Plastics industry
- Rubber industry
- Herbal Extractor
Reactor parameters:
|
Specifications |
Effective volume (L) |
Heating | Heating(colding)structure | Shaftseals | Remarks |
>FYF-50L | >50 | > > > HTF
> > |
> > > >Jacket >
| > > > >Single mechanical seal >
|
1. the motor power size, stirring speed level determined according to actual requirements.
|
|
>FYF-100L | >100 | ||||
>FYF-200L | >200 | ||||
>FYF-300L | >300 |
||||
>FYF-500L |
>500 |
||||
>FYF-1000L |
>1000 |
||||
>FYF-1500L |
>1500 |
||||
>FYF-2000L |
>2000 |
||||
>FYF-2500L |
>2500 |
||||
>FYF-3000L |
>3000 |
||||
>FYF-4000L |
>4000 |
||||
>FYF-5000L |
>5000 |
||||
>FYF-6000L |
>6000 |
||||
>FYF-8000L |
>8000 |
||||
>FYF-10000L |
>10000 |
||||
>FYF-12000L |
>12000 |
||||
FYF-16000L |
>16000 |
||||
>FYF-20000L |
>20000 |
||||
>FYF-25000L |
>25000 |
||||
>FYF-30000L |
300000 |
