Vertical Plastic Granules Mixer Machine Color Raw Materials Silo Mixer
Vertical silo mixers use a spiral stirring method to mix materials evenly. The material is poured into the machine’s hopper, then travels up a spiraling spindle to the top of the silo. Mixing screw creates space, from there, it falls down in an umbrella-like fashion, resulting in a well-mixed product. Vertical mixing silo machine has many advantages like automatic operation, overload protection, feeding limit alarm and other functions. Widely used in plastic granules, crushed materials and new or add masterbatch mixing homogenization.Vertical mixer features:
vertical design: easy to operate and easy to maintain.
easy to clean up: stainless steel, corrosion resistant and easy to clean.
uniform mixing: fast stirring, can ensure the consistency of each batch of materials,
cost effective: with less investment and faster efficiency
With automatic timing, overload protection, feeding limit alarm and so on. It has a small area, large capacity, low energy consumption, lower artificial cost, convenient operation, quick and uniform agitation and so on.
Description:
Specially designed for mixing Virgin + Master batch for homogenizes mixing for better processing extruder for better performance of color. Special tools design as per application.
Description of Operation:
Specially designed for mixing Virgin + Master batch for homogenizes mixing for better processing extruder for better performance of color.
Special tools design as per application.
Operating Principle
The Vertical silo Mixer acts as a mixing vessel containing a vertical central tube fitted with a mixing screw. The mixing screw transports the product to be mixed from the bottom to the top and carries it upwards, after which an (optional) distribution plate spreads the product. By gravity and because the mixing screw creates space at the bottom the product next to the mixing screw falls back down on its own.
Applications and Benefits
Using a silo as a mixing vessel gives a large mixing capacity and no residual product is left behind from a previous batch. The maximum diameter of the silo is 3.5 m with a maximum capacity of 60-70 cu m/hr. Suitable materials for homogenizing in a silo include dry cattle feed, recycled plastic, grinding stock, etc.
Features:
Tank in Stainless Steel 304
Medium Rotor Speed
Automatic Timer set-able 8-10 minutes per batch
Central screw with removable section at the top and bottom.
Electronic control panel

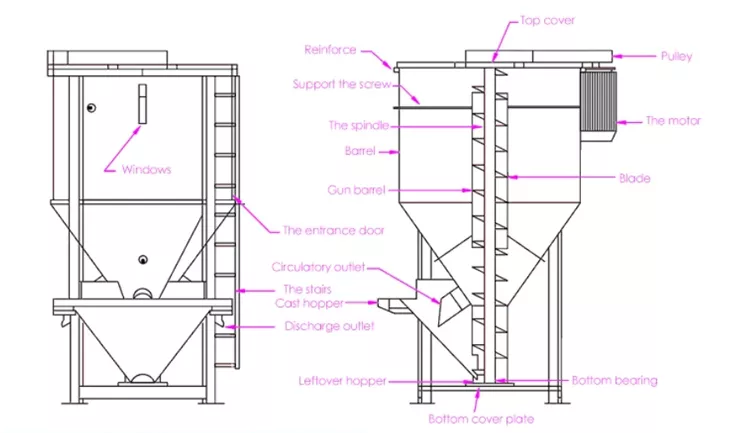

Vertical Silo Mixer Parts
Silo:
Silo Department stainless steel can use a variety of types, can also be customized double stainless steel structure barrel; Customizable capacities from 0.5 tons to maximum capacity 20 tons. Strong and durable, non-corrosive, easy to clean.
Feeder Hopper:
It can be combined with a circular outlet for secondary or multiple mixing. The inlet port can choose DN400 strong into the hole flange, the sealing effect is good, to ensure that the material will not be thrown out, another set of safety facilities such as protection block.
Loading Barrel：
The diameter can be customized according to the mixing material, with the right size of the screw to quickly upload the material to the top of the silo. Stainless steel barrel body, strong and durable, can do anti-static treatment.
Mixing Screw:
The screw is made of stainless steel, strong and durable. Mixing screw creates space and suitable for various plastic granules, food, feed crushed and other materials mixing and conveying.
Vertical silo mixer applications
Vertical mixing silo with granulation, vibratory screener and vibrating spiral elevator. Usually used as a post-process for the screening and mixing of recycled plastics.
MODEL | CAP. IN LITERS | CAP. IN KG | MOTOR HP |
|---|---|---|---|
VSM-100 VMS | 200 L | 120 KG | 1 HP |
VSM-200 VMS | 250 L | 200 KG | 3 HP |
VSM500 VSM | 850 L | 500 KG | 4 HP |
VSM-1000 VSM | 1650 L | 1000 KG | 5 HP |
VSM-1500 VSM | 2450 L | 1500 KG | 7.5 HP |
VSM-2000 VSM | 3600 L | 2000 KG | 10 HP |
5000 VSM | 5000 L | 3000 KG | 15 HP |
8000 VSM | 8000 L | 5000 KG | 15 HP |
10000 VSM | 10000 L | 6000 KG | 15 HP |
